Burfit Braided Sleeve:

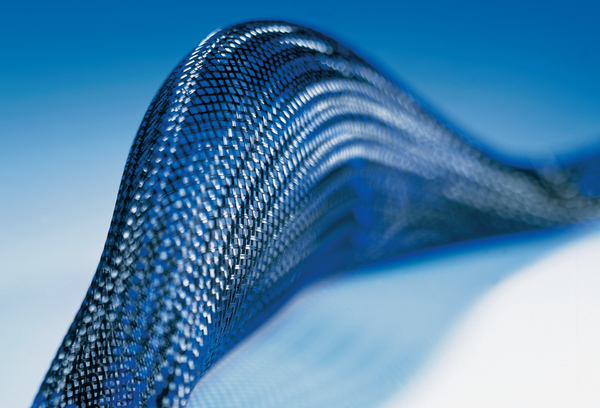

PA6: Polyamide 6 monofilament expandable sheath. PA6 is an expandable tubular braided sheath made of polyamide 6 monofilaments. It is easy to place on cables and can be easily applied under difficult conditions. (temperature, humidity, mechanical constraints, etc.) And it is very easy to use in many sectors. In the operating conditions from -60 ° C to + 160 ° C, the PA6 also does not advance the flame and has a self-extinguishing feature thanks to its building blocks. It is used in the sector as a mechanical knit sheath, flexible knit sheath, cable grip, cable protector, tube, cable collector and cable organizer.

Technical Specifications

Operating temperature -60 ° C to + 160 ° C
Standard colors: Black
Non-standard colors: Optional
Resistance peak: +200°C
Melting point: +255°C
Heat resistance: Current
Flame requirements: CEI 332-1 and FMVSS 302 FAR 25-853
Oxygen index limiting: 42,3% ........NF G07-128
Smoke poison: Pass ........... CEI 754-1 and CEI 754-2. Halogen free.
Smoke visibility: Pass ........... NF C 20452 (Polymer).
Cut (Dimension) In requested sizes

For more information, please contact us.
