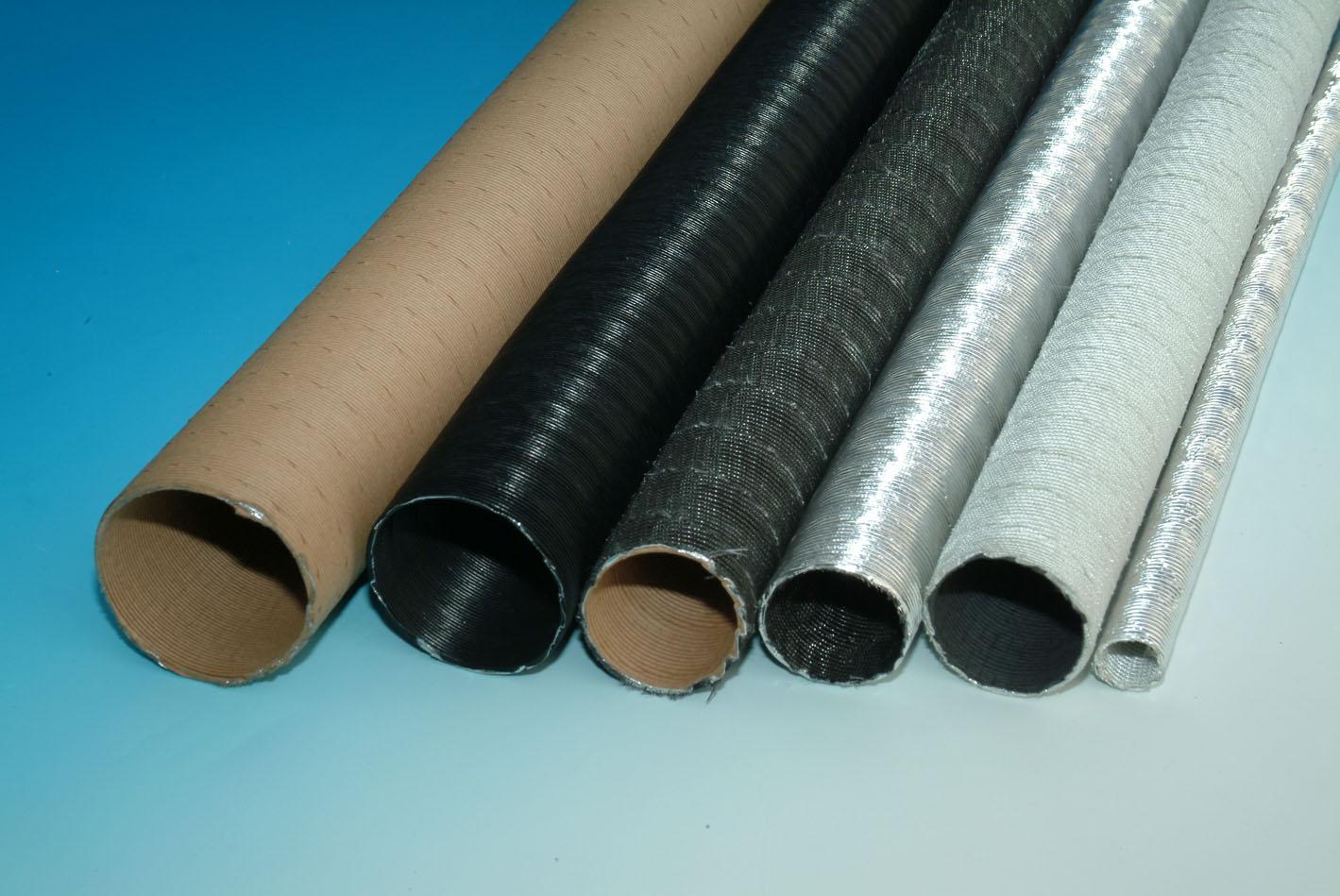

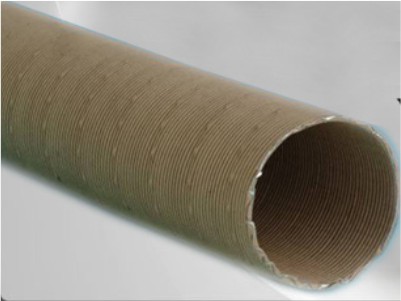

Burflex Flex Hoses

Burflex Flex Hoses;

Usage areas

Due to the flexibility of the product, the working area allows to work even under limited conditions. It is water and oil proof. Low cost alternative. Advantageous cost compared to other market products in this sector. Different layer combinations according to customer demands and requests. It is used as Flexible Heat-resisting sheath, flexible heat preservation pipe, flexible heat protector hose in marine industry in the automotive industry and yacht etc. also as flexible thermal sheath, flexible protective tube, flexible protective tube, flexible air carrier pipe, flexible air carrier hose, mechanical mesh sheath, flexible mesh sheath, cable grip, cable protector, tube, cable collector and cable organizer.

Technical Specifications

Material K+AL+K

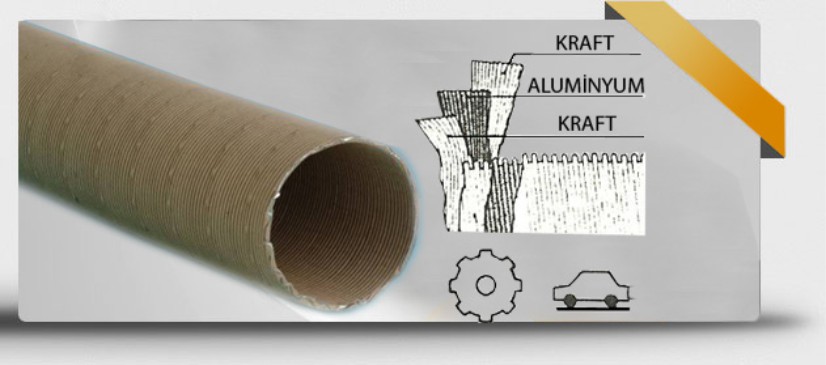

Layer Structure Outer Layer: Kraft Middle Layer: Aluminum Inner Layer: Kraft
Heat resistance 120 °C
Diameter Measures Ø24,5 mm - Ø160 mm
Length Length cutting (in desired sizes) or 10 m round bulk without joints. Winding can be done in infinite length with joints.
Length tolerance ± 5 mm up to 400 mm, ± 1% for 400 mm and above
Number of Knots Min. 400 knots / meter
Bending Radius About 1.5 x ID
Temperature Resistance -30 ° C to + 150 ° C (both internal and external)
Test Conditions -30 ° C, 4 hours, +150 ° C, 48 hours

For more information, please contact us.
